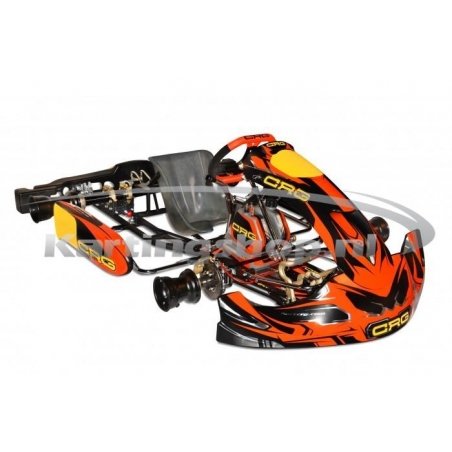

THE WORLD CHAMPION KZ CHASSIS!
The Road Rebel chassis has a frame with ø 32 Chrome moli tubes, with the new bearing hanger reinforced on the brake side.
On this chassis it is possible to adjust the rear axle and the stub axle settings; on the front side it is easy to set up the caster camber by the exclusive Sniper caster system.
All the newly approved frames will be equipped with new fairings complete with adhesive kits and new braking systems called VEN 13.
BRAKING SYSTEMS CRG has approved a new braking system identified by the initials VEN 13 DD for the Direct Drive categories and VEN 13 KZ for the Shifter / KZ categories.
Is still homologated also the V11 brake system that could be selected from drop-off menu
The most notable novelty of these new braking systems concerns the pump, which includes an innovative system for modulating braking called ABA (adaptive brake assistant). Through a regulator, in fact, it will be possible to calibrate the pump so that an internal system manages the braking force, avoiding the blocking of the tires.
This mechanism allows you to brake to the limit, but without locking the tires, so as to avoid the hopping of the rear axle and the loss of grip of the correct line at the corner entry.
An aspect to underline is how this function can be adjusted according to the needs of the category (different powers) and the tires used (different grip), but also for the feeling sought by the individual driver.
The intervention "range" of this system can range from neutral, so do not intervene, up to managing the locking, by exerting maximum pressure on the brake pedal.
| Category |
KZ – Shifter |
| Ø Tubes |
32 |
| Wheel Base |
1.050 |
| Rear Width |
650 |
| Front Width |
735 |
| Ø Axle |
50 |
| Brake System |
Hydraulic / Ven 13 KZ |
| Brake Disk |
Floating Steel |
| Fuel Tank Capacity |
8,5 |
| Steering Wheel |
Black Orange Ø340 |
| Rear Hubs |
Magnesium |
| Seat |
Resin |
| Wheels |
132/212 Magnesium |
DIFFERENCES FROM OLD MODEL
Color of chassis always black, but opaque
Kit Stickers, new grey-race version with fuel tank grey color
Brake System, pumps and calipers are the same of last model, but with new discs on front and rear system
Steering Wheel, modified for better grip
Spoiler larger than old model
Center of gravity, moved on rear of 18mm for best chassis balancing with new homologated tyres.
Geleverd Exclusief: MOTOR, READY TO RACE KIT,BANDEN EN MONTAGE.
